THEORY HIGH OUTPUT SUBWOOFERS

Underpinning every Theory system is one or more high-output, professional-grade passive subwoofers. The Theory subs add thrilling scale and impact to the reproduced sound, whether it be a motion picture soundtrack, concert video or stereo music.





sub12 12” PASSIVE SUBWOOFER

Description: High Output Passive Subwoofer System

Operation: Passive, Requires 1 THEORY ALC Subwoofer Amp channel

Drivers: 1 x 12" THEORY Woofer w 4-Inch Voice Coil

Bandwidth: 25Hz – 125Hz

Sensitivity: 94dB

Power Handling: 500W (AES), 1000W Continuous

Power Requirements: Requires THEORY Amplified Loudspeaker Controller

Maximum Output: 122dB

Nominal Impedance: 4-ohms

Colors: Black, White

Dimensions: 17.8" H x 20.5" W x 17.8" D

Weight: 117 lbs.

SUGGESTED US RETAIL PRICE: $1,200 each

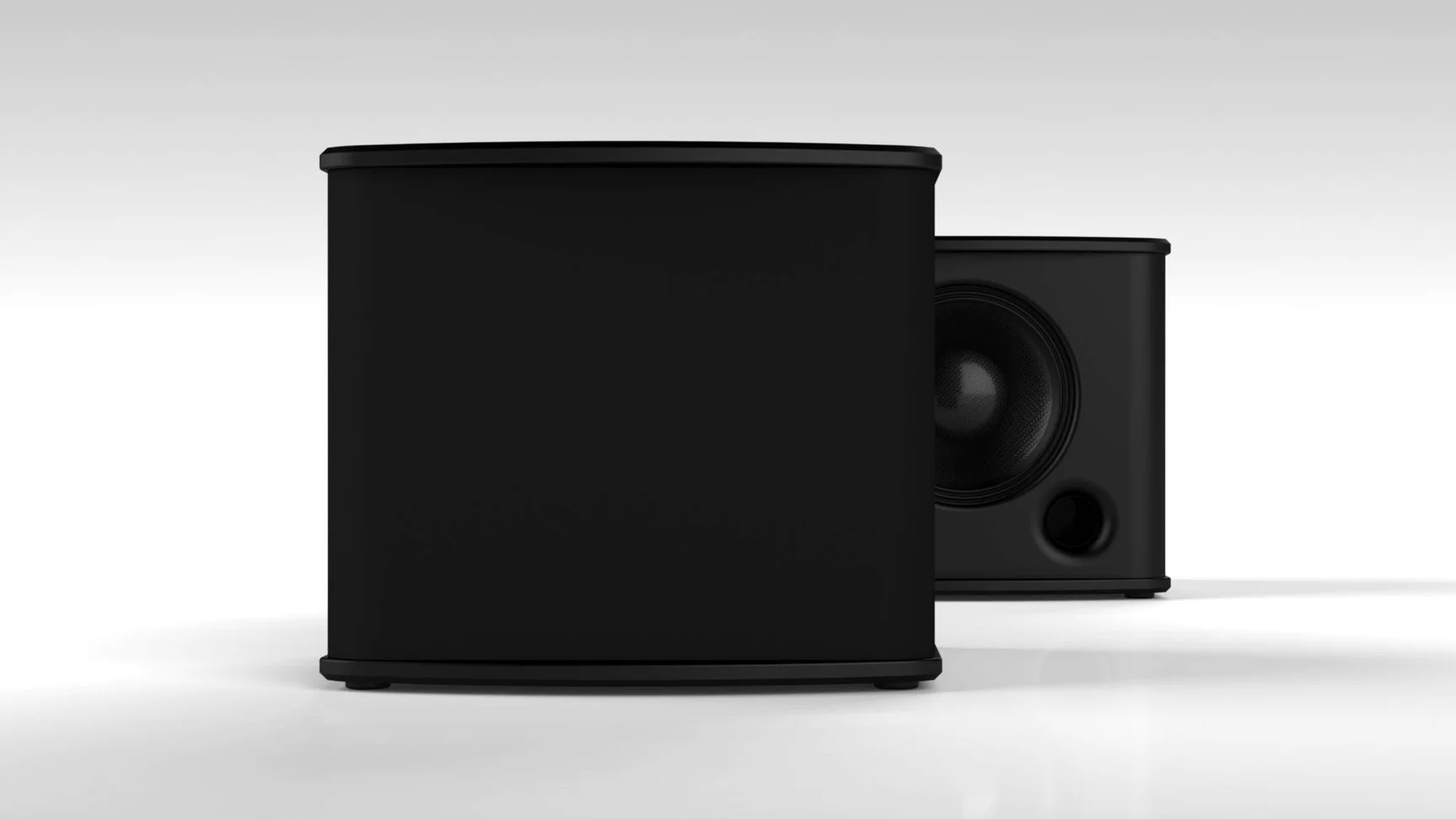

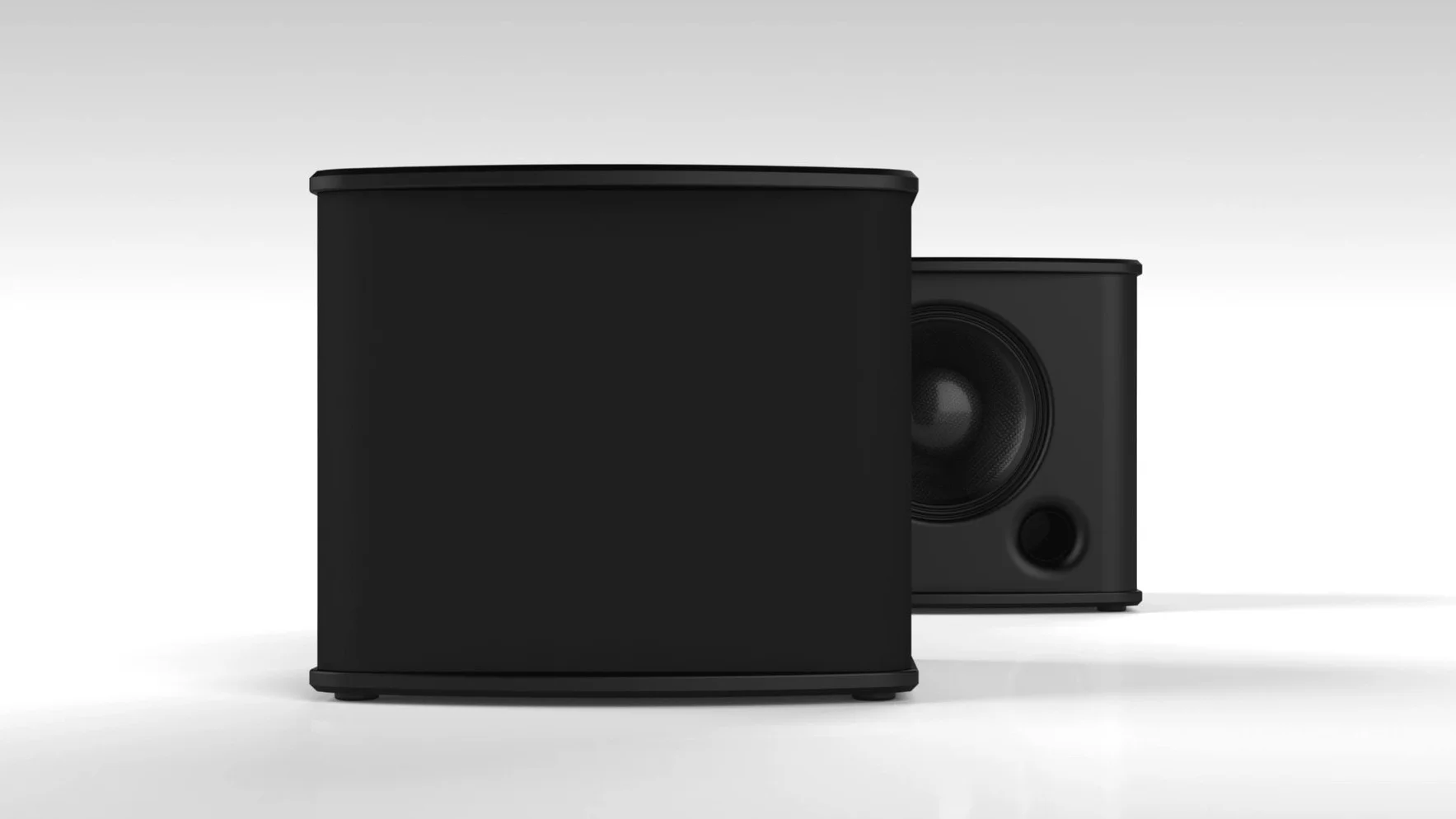

sub12 PASSIVE SUBWOOFER BLACK

sub12 PASSIVE SUBWOOFER BLACK




sub15 15” PASSIVE SUBWOOFER

Description: High Output Passive Subwoofer System

Operation: Passive, Requires 1 THEORY ALC Subwoofer Amp channel

Drivers: 1 x 15” THEORY Woofer w 4-Inch Voice Coil

Bandwidth: 24Hz – 125Hz

Sensitivity: 96dB

Power Handling: 1000W (AES), 2000W Continuous

Power Requirements: Requires THEORY Amplified Loudspeaker Controller

Maximum Output: 124dB

Nominal Impedance: 4-ohms

Colors: Black, White

Dimensions: 21.3” H x 23.5” W x 19.8” D

Weight: 158 lbs.

SUGGESTED US RETAIL PRICE: $1,500 each

sub15 PASSIVE SUBWOOFER BLACK

sub15 PASSIVE SUBWOOFER BLACK

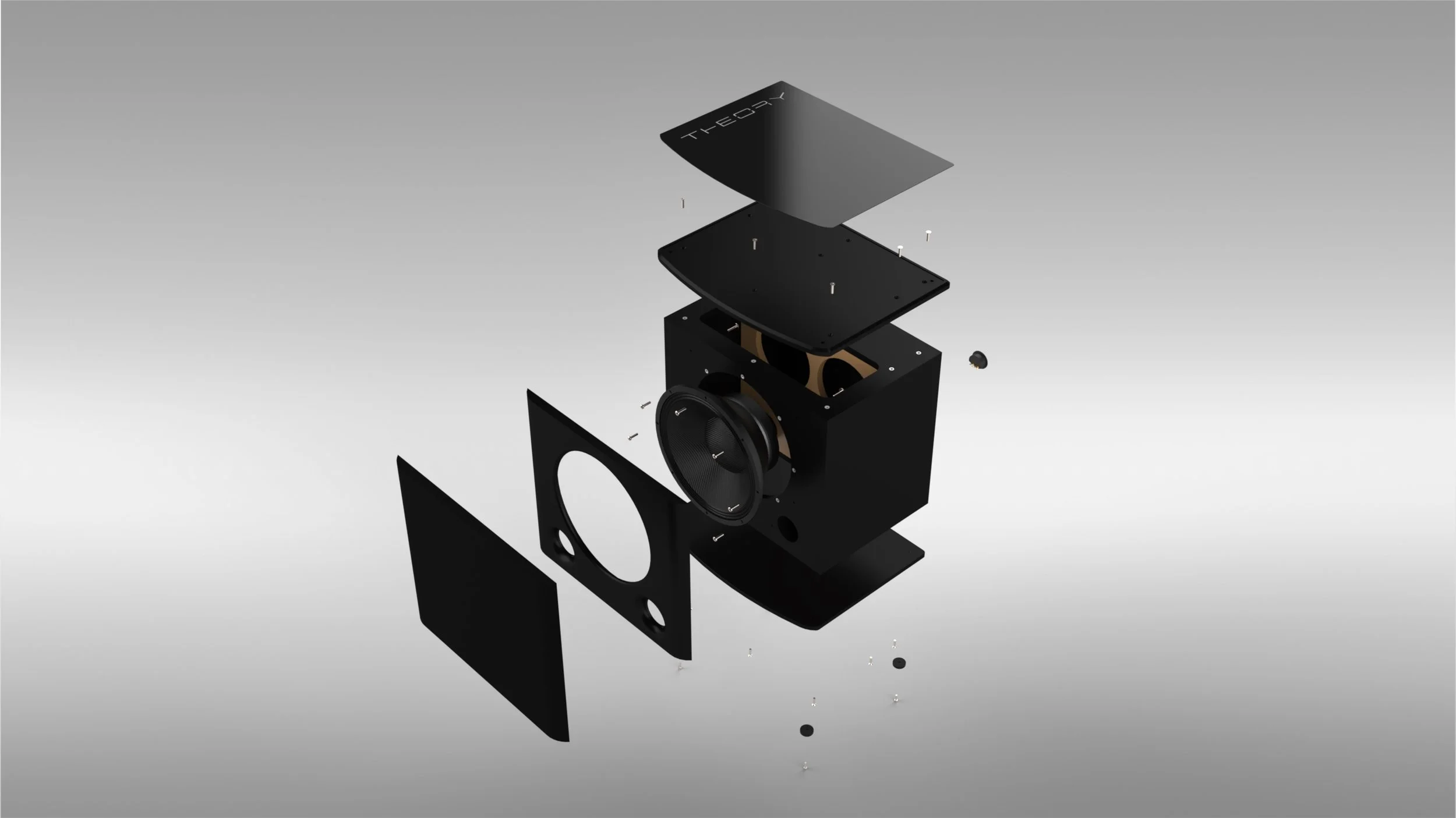

sub15 EXPLODED

sub15 EXPLODED

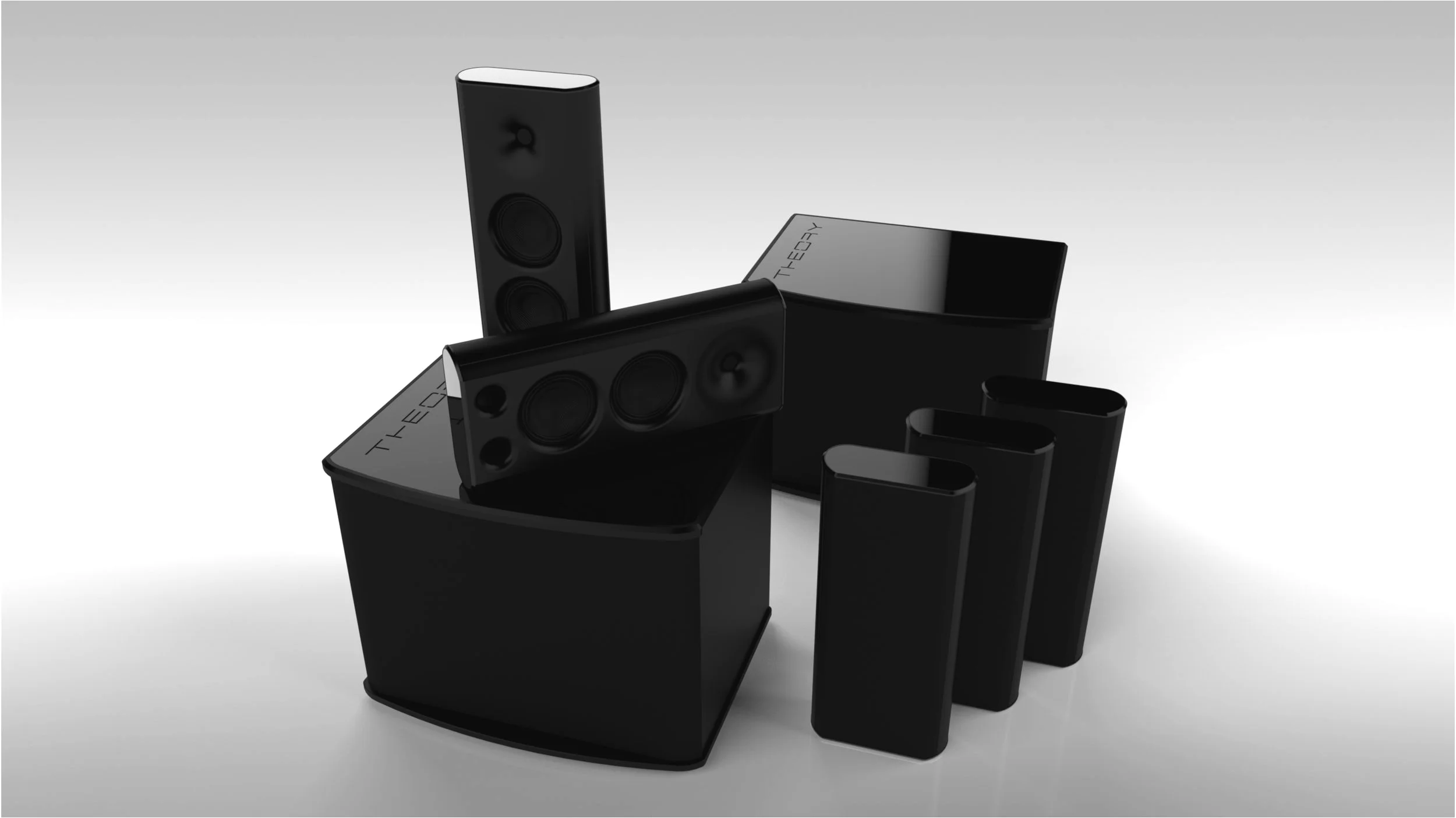

sub15 SHOWN WITH 5x sb25 ON-WALL MULTIPURPOSE LOUDSPEAKERS

sub15 SHOWN WITH 5x sb25 ON-WALL MULTIPURPOSE LOUDSPEAKERS
